Assembly Instructions

Frameless RTA cabinet assembly will be a snap with this patented interlocking joint system. With a screw gun, dead blow mallet, and a little patience… your cabinets will go together with ease!

Additional videos and assistance will be available to you after your order is placed. In the meantime, you can preview an Upper Cabinet Assembly video.

Step 1.

Lay one Cabinet Side on a flat, level surface. Check that all female Lamello P-14 Tenso fasteners are level and centered within their slots. (NOTE: If the cabinet will have drawers, install the drawer glides before proceeding.)

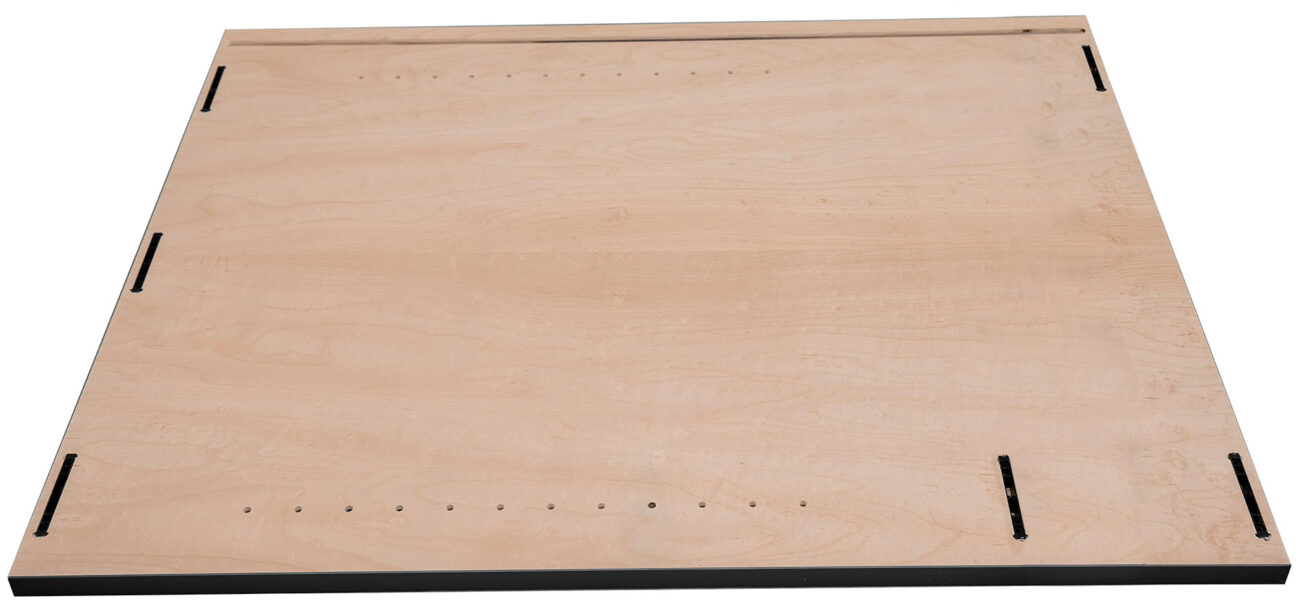

Without drawers

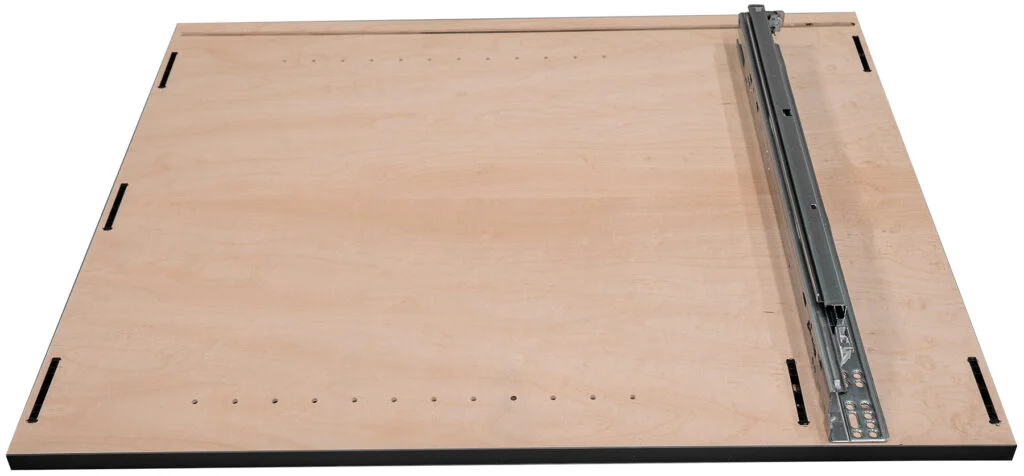

With drawers

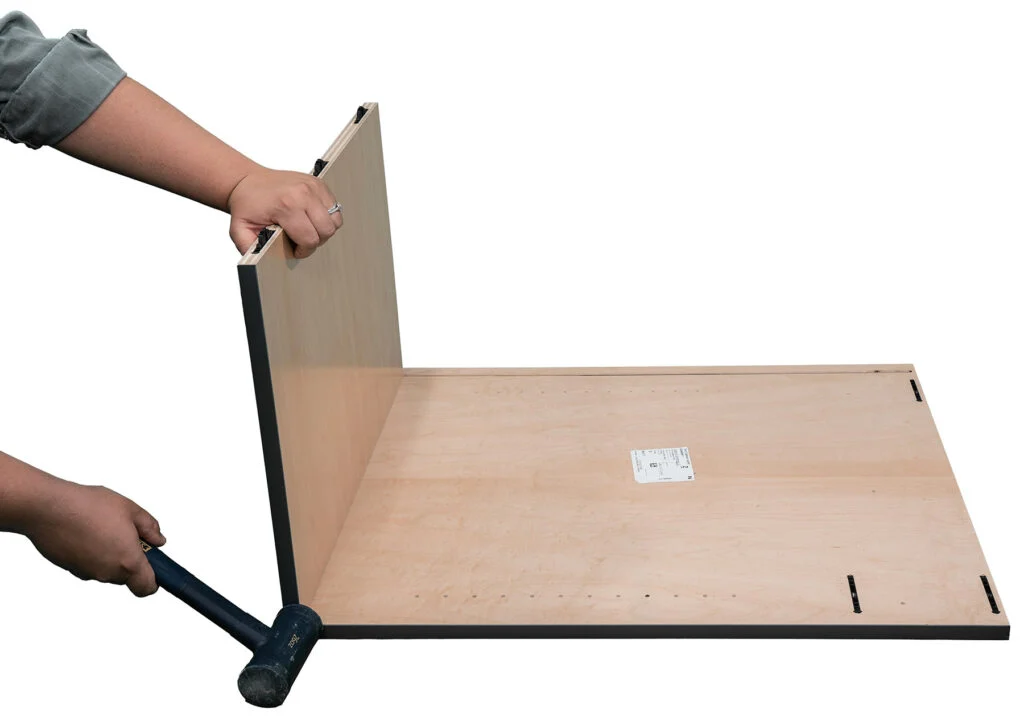

Step 2.

Insert the male Lamello P-14 Tenso fasteners into the slots for the Cabinet Bottom. Align the fasteners and snap the Bottom into the Cabinet Side. Check for flush, and use a dead blow hammer for adjustments, if needed.

Step 2.

Insert the male Lamello P-14 Tenso fasteners into the slots for the Cabinet Bottom. Align the fasteners and snap the Bottom into the Cabinet Side. Check for flush, and use a dead blow hammer for adjustments, if needed.

Step 2.

Insert the male Lamello P-14 Tenso fasteners into the slots for the Cabinet Bottom. Align the fasteners and snap the Bottom into the Cabinet Side. Check for flush, and use a dead blow hammer for adjustments, if needed.

Step 2.

Insert the male Lamello P-14 Tenso fasteners into the slots for the Cabinet Bottom. Align the fasteners and snap the Bottom into the Cabinet Side. Check for flush, and use a dead blow hammer for adjustments, if needed.
